MAGDY Elastomeric Bearing Design

Description

MAGDY Elastomeric Bearing Design is a professional engineering software developed for the analysis, design, and verification of elastomeric bridge bearings.

The software provides bridge and structural engineers with an organized workflow for evaluating bearing dimensions and design requirements using the defined loads, movements, rotations, and material properties.

Key Features:

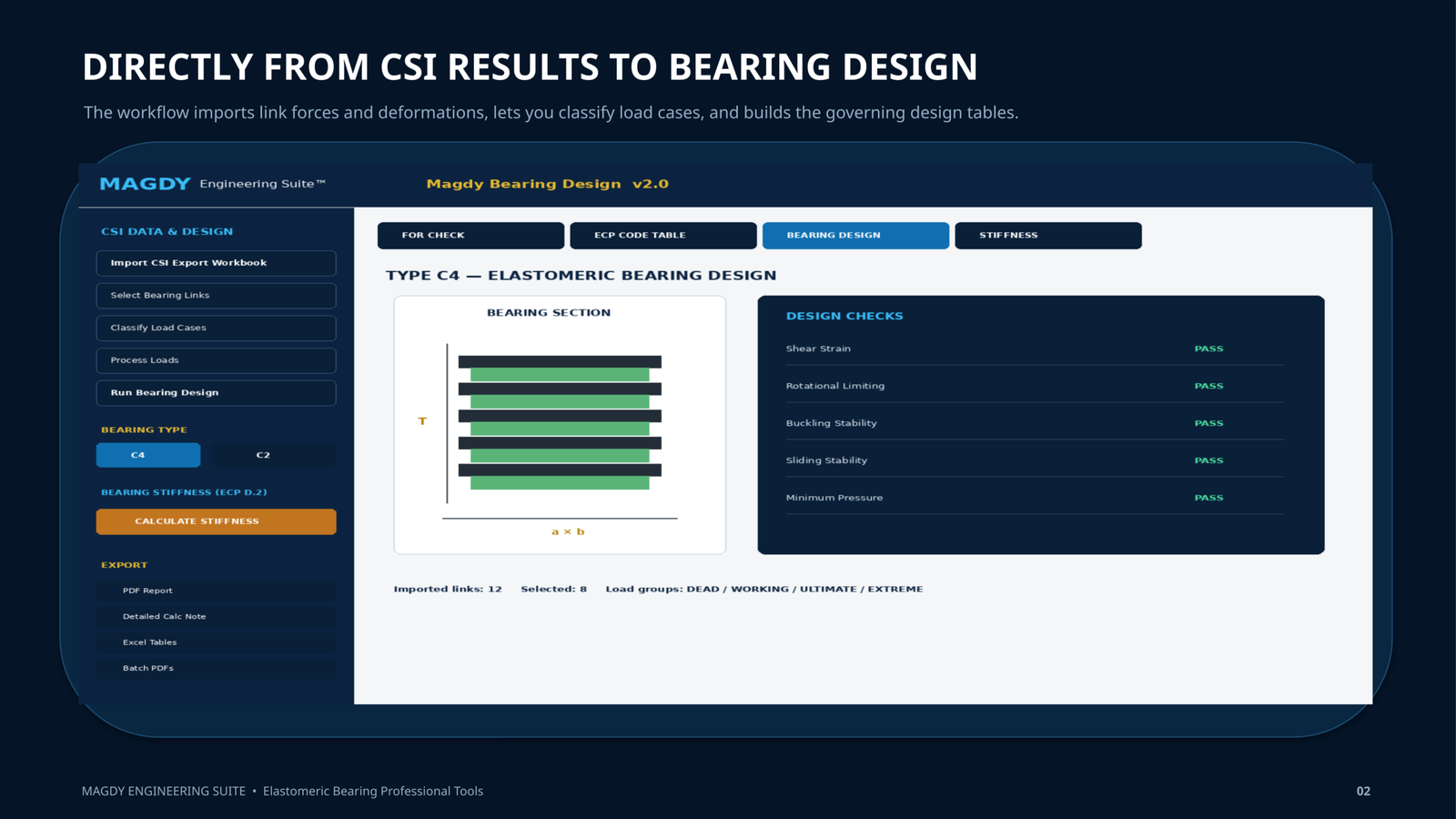

• Elastomeric bridge bearing design and verification
• Evaluation of vertical and horizontal loads
• Bearing dimension and geometry checks
• Elastomer layer configuration

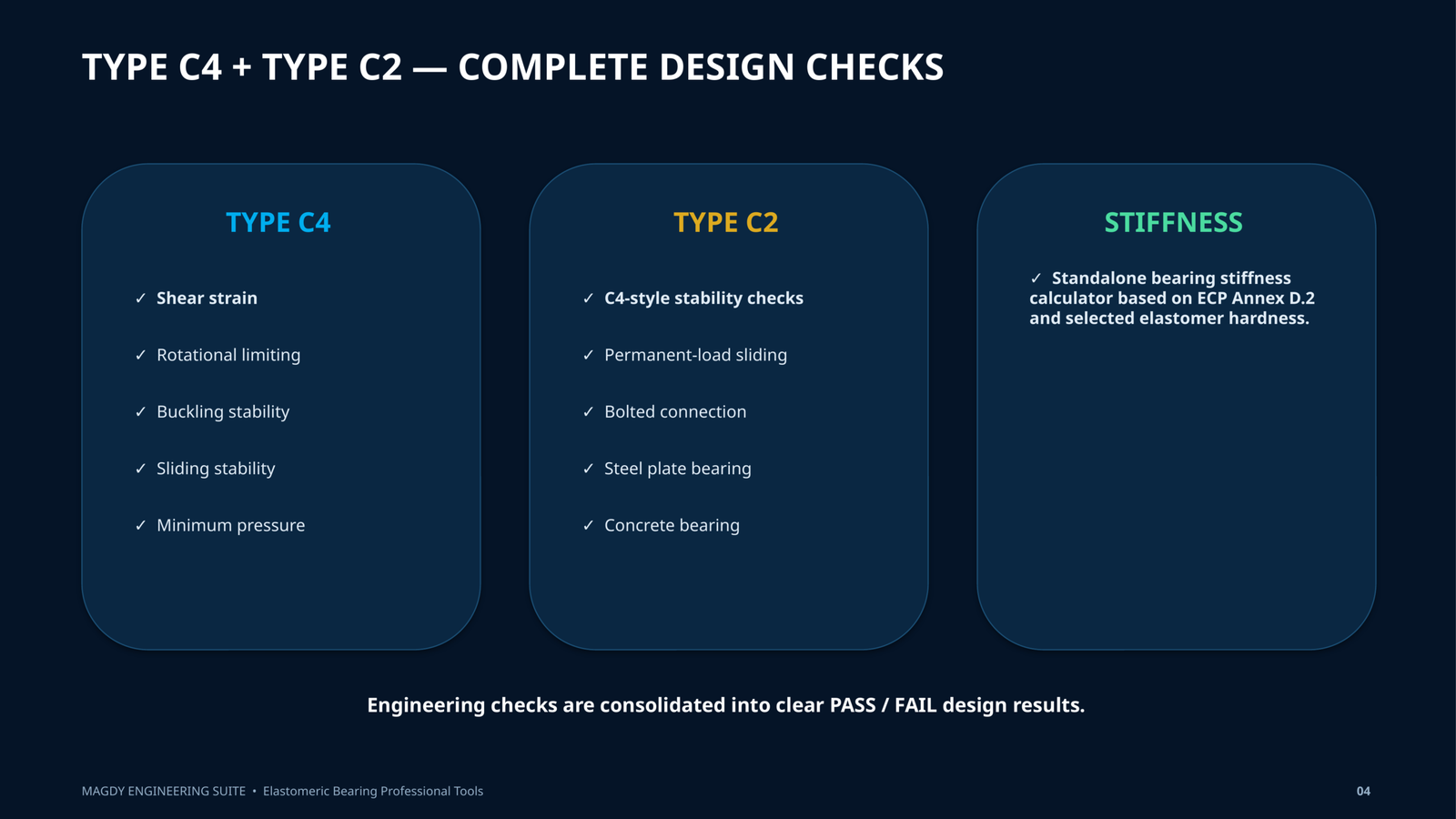

• Shear deformation and movement checks
• Rotation verification
• Compressive stress evaluation

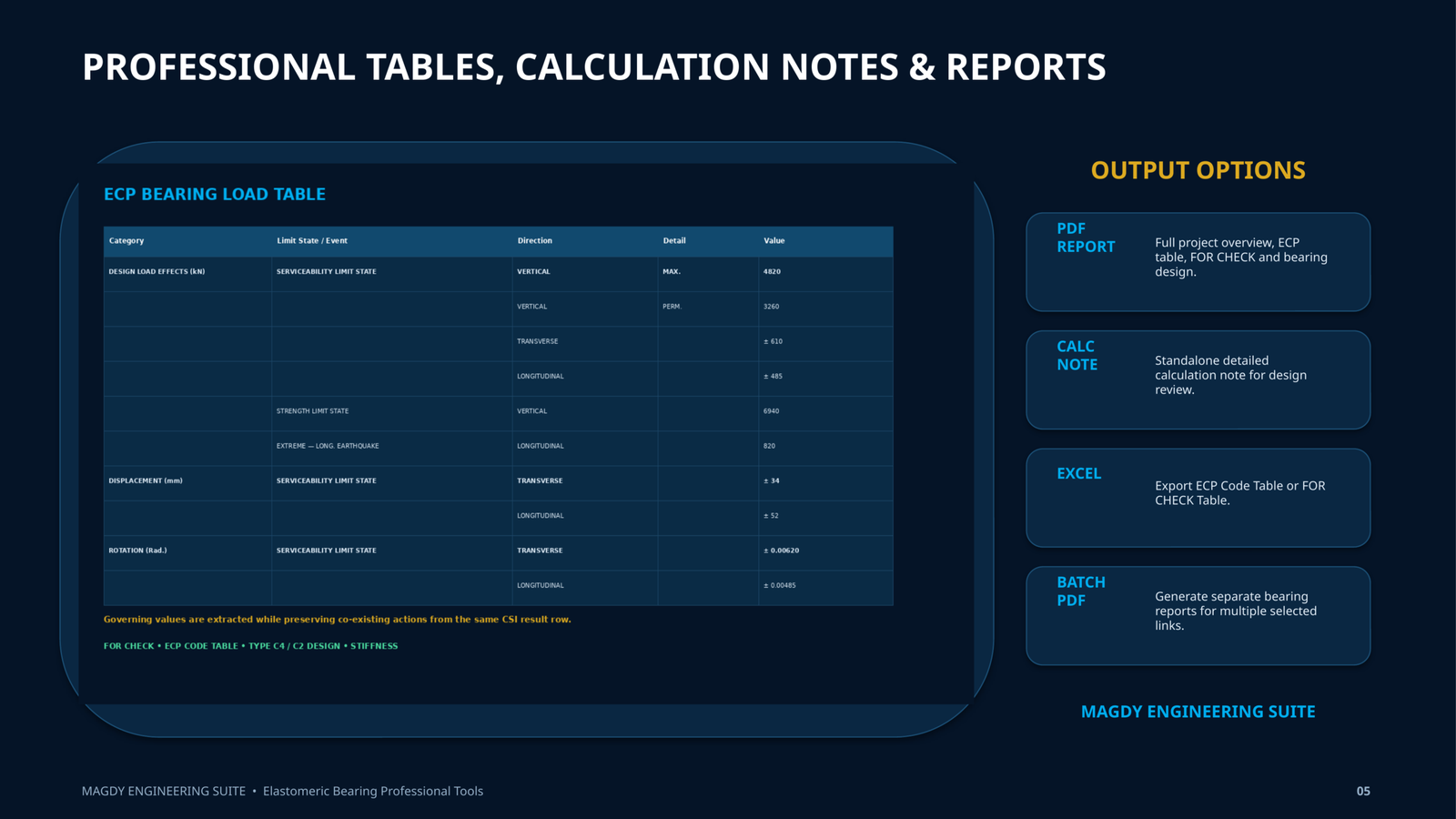

• Organized presentation of design inputs and results
• Reduces repetitive manual calculations
• Fast and efficient engineering workflow
• Suitable for bridge design and bearing verification
• Designed specifically for bridge engineers

Typical Applications:

• Reinforced elastomeric bearings
• Bridge bearing design
• Bearing selection and verification
• Prestressed and reinforced concrete bridges
• Bridge superstructure support systems
• Engineering design calculations and documentation

Software Benefits:

MAGDY Elastomeric Bearing Design provides engineers with a practical and efficient tool for performing elastomeric bearing calculations and design checks. It helps reduce manual calculation effort, improve consistency, and organize the bearing design process.

Developed by MAGDY Engineering Software

Professional Engineering Software & Tools for Bridge and Structural Engineers.
